Garage Door Cable Repair in Baldwin Park, CA

Garage door cable repair in Baldwin Park, CA

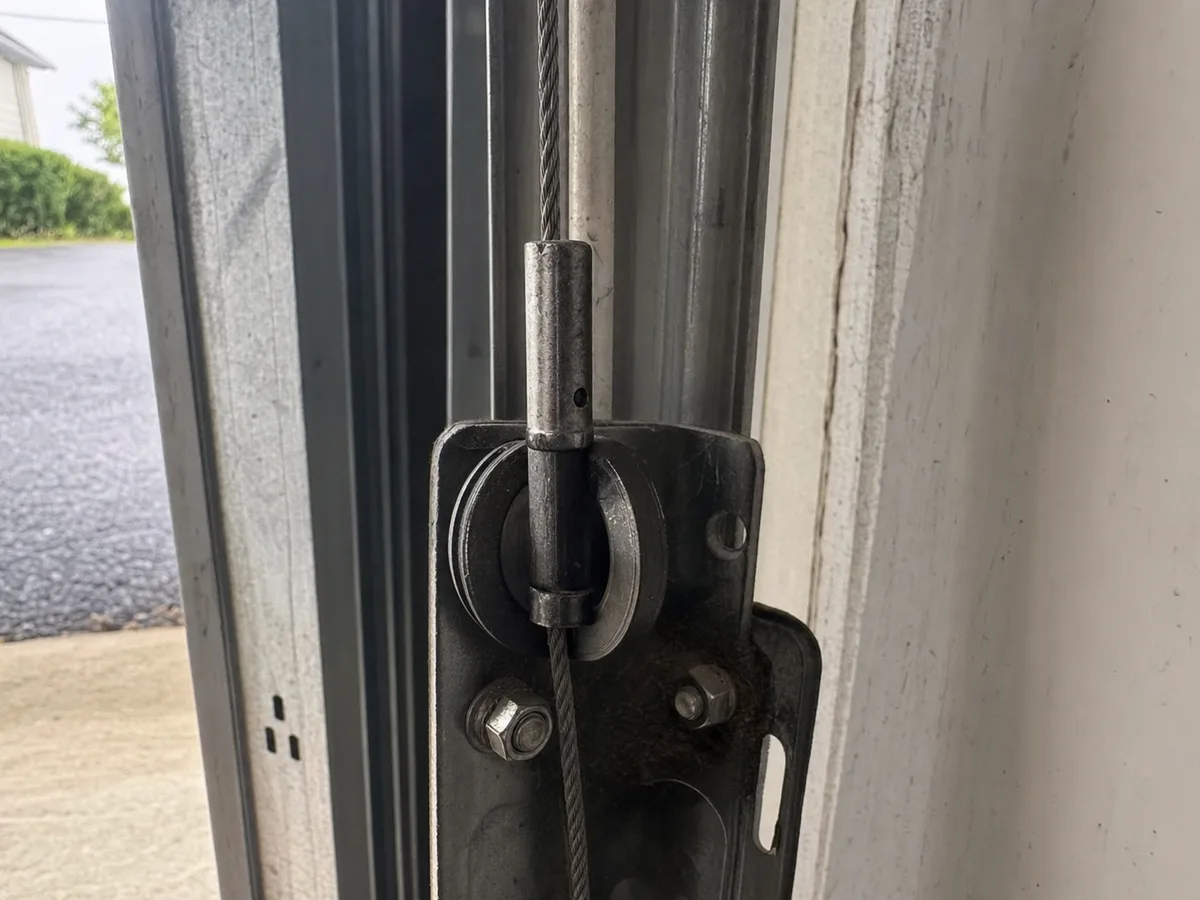

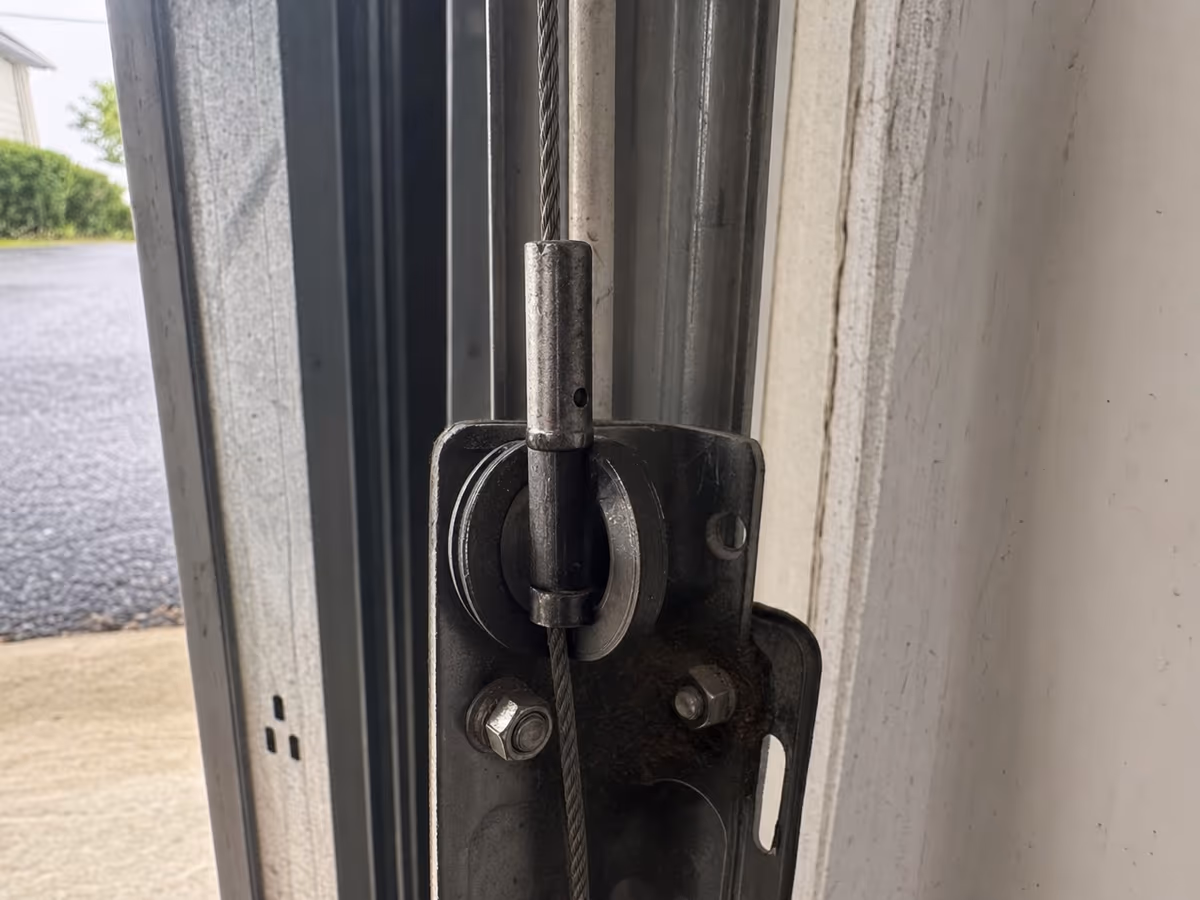

Cables are galvanized steel wound around a drum at each end of the torsion shaft. When one snaps, the door drops unevenly and jams in the track. The break point is almost always the bottom swaged loop — the factory crimp that attaches the cable to the bottom bracket. That fitting takes the full shock load every cycle. Doors cycling daily accelerate fatigue at that crimp faster than doors used twice a week.

San Gabriel Valley postwar single- and two-car doors typically use .106-inch diameter cables. Larger foothill 2-3 car doors often need .125-inch or heavier cable rated above 400 lb. Using undersized cable on a heavy door is the most common callback we see. Always match cable diameter to the door's listed weight, not just the drum size.

Santa Ana wind debris in tracks can bow the bottom section. A bowed section binds, overstresses the cable on that side, and causes uneven wear within weeks. Check track alignment after any windstorm before attributing cable wear to age alone.

Heat and UV on south-facing doors degrade the plastic bottom bracket insert that the cable loop seats against. When the insert cracks, the loop shifts and the cable frays at the contact edge. Inspect that bracket whenever you replace cable. It's a $4 part that causes $150 failures.

Cable replacement on a standard single-car door starts around $75. Two-car and heavier foothill doors with larger drum hardware start around $145. Both figures assume the torsion spring tension is already correctly set.
