Garage Door Spring Repair in Baldwin Park, CA

Garage door spring repair in Baldwin Park, CA

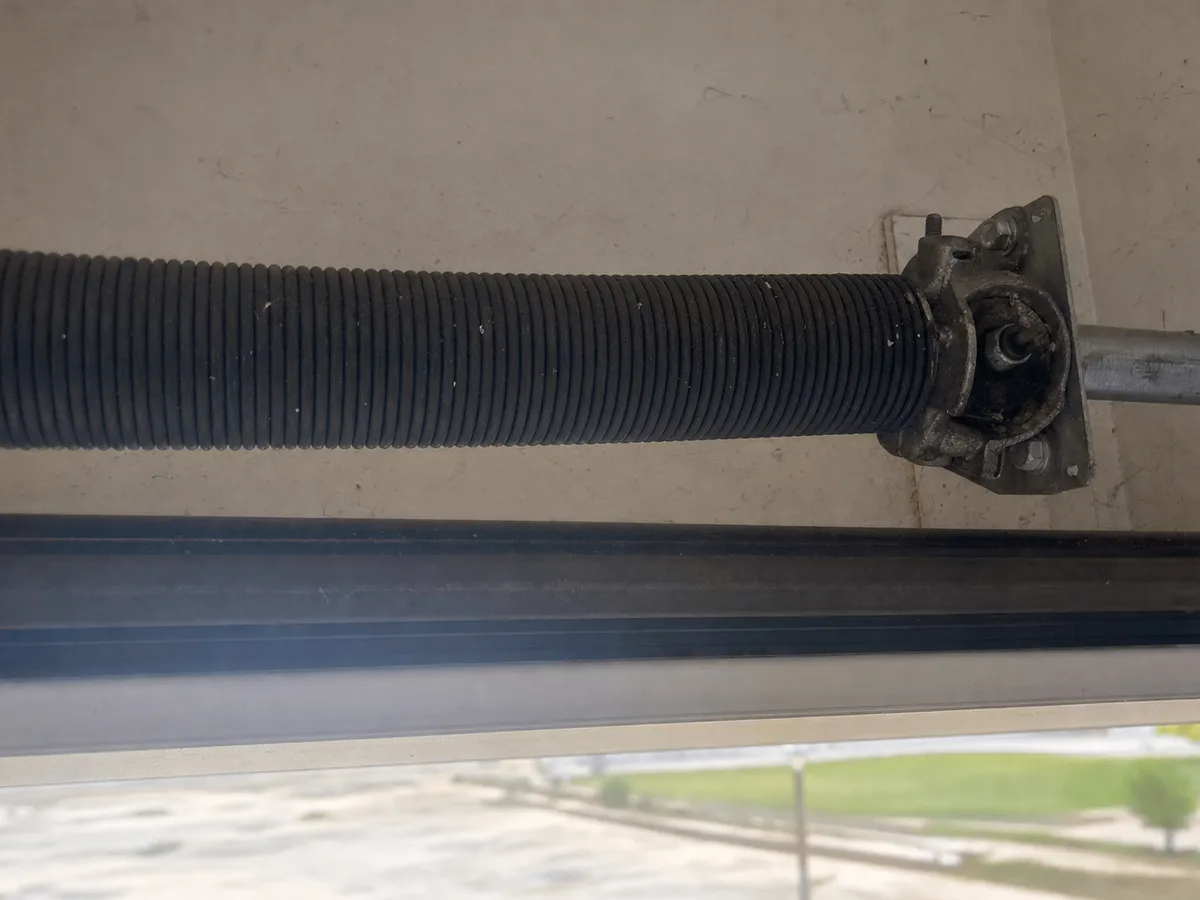

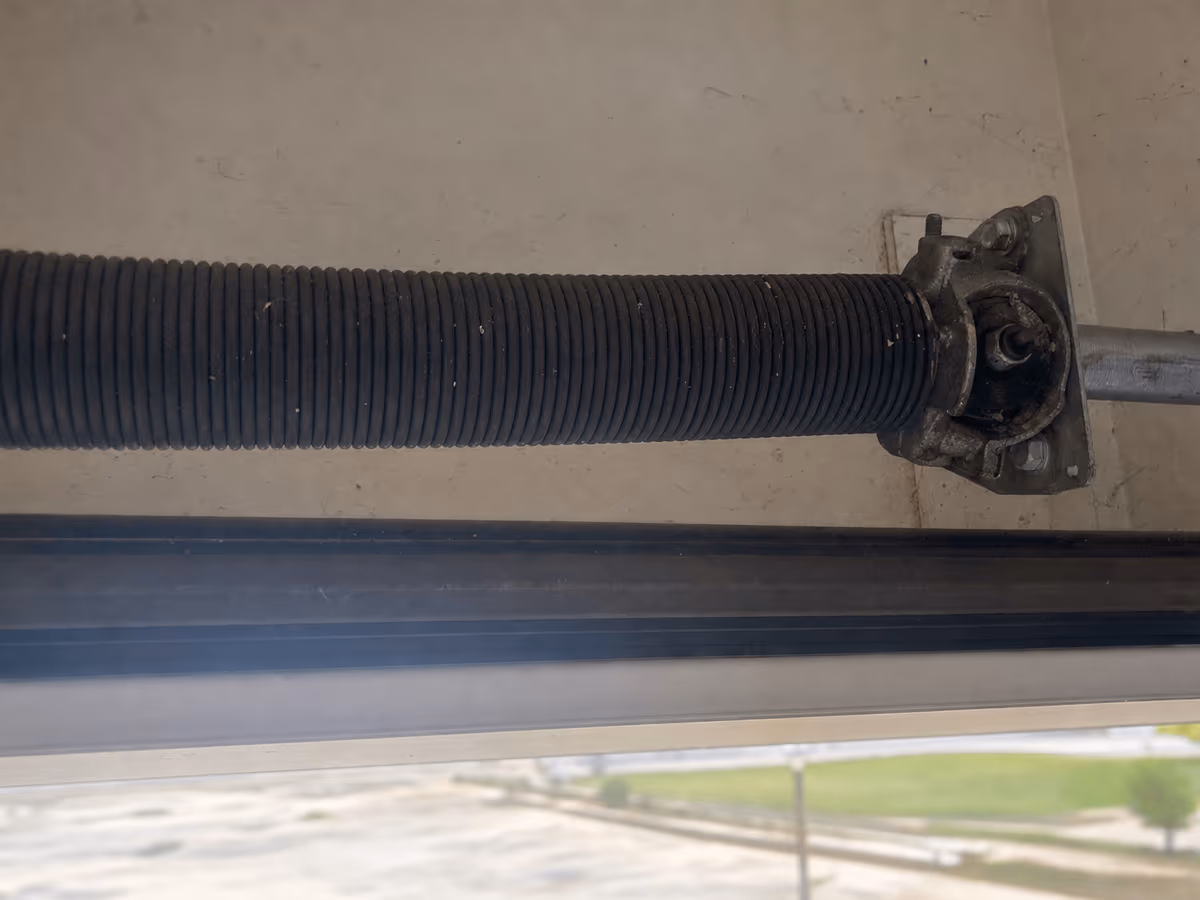

Torsion springs store roughly 300 foot-pounds of torque on a standard single-car door. That stored energy releases violently at failure. Baldwin Park's San Gabriel Valley postwar single- and two-car doors mostly use one torsion spring on a 2-inch shaft. Larger foothill 2-3 car doors typically need dual springs, each sized separately to the door's weight, often 130 to 170 pounds per panel section.

No freeze cycle here means spring metal never fatigues from thermal contraction. Instead, heat and UV on south-facing doors cook the spring's factory grease dry. Dry coils create friction-flat spots, cutting cycle life from a rated 10,000 cycles down closer to 6,000. Doors cycling daily in an active household hit that threshold in under nine years.

Santa Ana wind debris in tracks adds side load that forces springs to compensate unevenly. One spring works harder than the other. Paired springs rarely break simultaneously, but replacing only the broken one leaves the older spring mismatched in tension. Technicians should re-tension or replace both.

Spring wire diameter and inside diameter together determine torque output. A 0.225-inch wire on a 1.75-inch inside-diameter spring is not interchangeable with a 0.234-inch wire, even if overall length matches. Wrong wire gauge causes the door to drift open or close under opener load.

Repair starts around $180 for a single torsion spring swap, including hardware and winding. Dual-spring setups on heavier foothill doors start around $220.
